【熱銷】XHB-3000型 數顯布氏硬度計【大屏幕顯示】

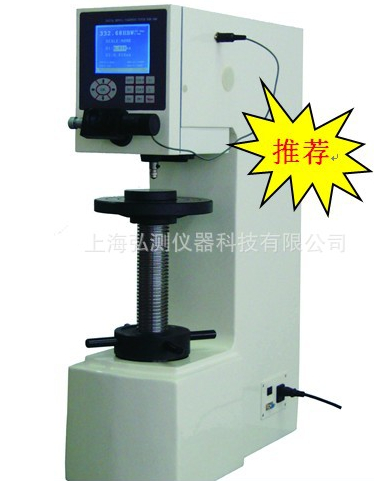

XHB-3000型數顯布氏硬度計【大屏幕液晶數字顯示】

XHB-3000Digital DisplayBrinell hardness [large LCD digital display]

產品簡介/ Product introduction：

XHB-3000型數顯布氏硬度計（大屏幕液晶屏顯）是我司新開發的,采用精密的機械機構和微機控制閉環系統，具有國內先進水平、集光、機、電、算于一體的新一代布氏硬度測試儀器，更是對飛機、汽車等安全部件進行硬度檢測的理想儀器。該儀器取消了砝碼，采用電動加卸試驗力，由0.5‰精度的壓力傳感器進行反饋，CPU控制并能對試驗中損失的試驗力進行自動補償。適用于鑄鐵、鋼鐵、有色金屬、軟合金材料、黑色金屬和有色金屬的布氏硬度測定.

XHB-3000 digital Brinell hardness tester (large screen liquid crystal display) is a newly developed by our company, close loop control system with mechanical precision and microcomputer, with test instrument of new generation Brinell hardness of domestic advanced level, set light, machines, electricity, computer language, is an ideal instrument for hardness testing the aircraft, automobile safety components. The instrument without weights, the use of electric loading and unloading test force, a feedback of the pressure sensor 0.5 ‰ precision, CPU control and can test to test the automatic compensation for loss. Determination of Brinell hardness suitable for cast iron, steel, nonferrous metals, soft alloy material, ferrous and non-ferrous metals.

本機采用圖形化用戶界面,可中英文轉換,菜單操作,方便快捷.自動保存每次試驗的參數設置,試驗過程自動化.自動處理試驗數據,并可進行多種硬度值自動轉換.采用先進的無摩擦主軸系統,保證試驗的準確可靠.

This machine adopts the graphical user interface, can be in English translation, menu operation, convenient and quick. Set the parameters are automatically saved in each test, the test process automation. The automatic processing of experimental data, and for a variety of hardness value. The automatic conversion of no friction spindle system, ensure the test is accurate and reliable.

本機采用電子自動加荷,計算機軟件編程,高倍率光率測量,光電傳感等系統.各項操作過程和試驗結果的數據均可在LTD大屏幕顯示,試驗結果的數據可通過打印機輸出.本機適用于各類生產加工企業、大專院校、科研機械的試驗室.

This machine adopts electronic auto loading, computer software programming, high magnification optical measurement, photoelectric sensor system. The operation process and the test results of the data can be found in the LTD large screen display, test data can be output through the printer. This device is suitable to test room all types of production and processing enterprises, universities, scientific research machinery.

本機內置數顯測微目鏡,壓痕可以通過測微目鏡直接測量,不用查表,也不用鍵入壓痕對角線長度,在液晶屏上直接能顯示硬度值和試驗力、試驗力保持時間、壓痕長度,讀數精確,操作方便。

This machine with built-in digital display micrometer eyepiece micrometer eyepiece, indentation can be measured directly, without looking up the table, will not enter the indentation diagonal length, on the LCD screen can directly display hardness value and test force, holding time of the test force, indentation length, accurate reading, convenient operation.

各項技術指標均符合：GB/T 231-2002金屬布氏硬度試驗技術條件，參照ISO6508-2:1999國際標準。

Various technical indicators are in line with: GB/T 231-2002 metal Brinell hardness test technology conditions, according to ISO6508-2:1999 international standard.

適用范圍/ Scope of application：

適用于鑄鐵、鋼鐵、有色金屬、軟合金材料、黑色金屬和有色金屬的布氏硬度測定.主要用于組織不均勻的鍛鋼和鑄鐵的硬度測試，鍛鋼和灰鑄鐵的布氏硬度與拉伸試驗有著較好的對應關系。布氏硬度試驗還可用于有色金屬和軟鋼，采用小直徑球壓頭可以測量小尺寸和較薄材料。布氏硬度計多用于原材料和半成品的檢測，由于壓痕較大，一般不用于成品檢測。

Determination of Brinell hardness suitable for cast iron, steel, nonferrous metals, soft alloy material, ferrous and non-ferrous metals. Mainly used for hardness testing organization uneven forged steel and cast iron, Brinell hardness and tensile tests of forged steel and gray cast iron has a good corresponding relationship. Brinell hardness test can also be used for non-ferrous metals and steel, using small diameter ball indenter can be measured by the small size and thin material. Brinell hardness tester used for raw materials and semi-finished products testing, the indentation is larger, generally not used for testing of finished product.

工作環境/ Work environment：

1、在室溫10~35℃的范圍內；

2、在穩固的基礎上水平安裝；

3、在無震動的環境中；

4、周圍無腐蝕性介質；

5、室內相對濕度不大于65%；

1, in the range of room temperature 10~35℃;

2, in a stable foundation for horizontal installation;

3, in the absence of vibration environment;

4,Non corrosive medium, around;

5, the indoor relative humidity of not more than 65%;

獨有優點/ Unique Advantages：

l 主機采用微機閉環控制系統，國內唯一獨有；

l host microcomputer closed loop control system, the unique;

l 主機采用先進的無摩擦主軸系統,保證試驗的準確可靠；

l hostuses advancedfrictionspindlesystem to ensureaccurate and reliabletest;

l 布氏硬度計完全由計算機來控制，而且進行64000的細分（世界首創）；

l Brinell hardnessis completelycontrolled by thecomputer, andcarried64000subdivision(world's first);

l 在整個加荷、包荷和卸荷過程中由計算機來決定它的速度（即由計算機控制的無級變速），它保證了試驗力加荷的平穩性、正確性和重復性；

l Throughout theloading,unloading andloadpackageprocessby a computerto determine itsspeed(ie,controlledby a computerCVT),whichensures thesmoothtest forceloading, accuracyand repeatability;

l 高精度控制系統是與多所國內知名高校的材料分析導師共同研發的，基于控制系統的嚴格，內置程序的精密，所以國內很多著名高校均是選擇我司的全功能布氏硬度計；

l precision controlsystemismore thanwell-known domesticand MaterialsAnalysismentoruniversitiesjointly developed,based ona strictcontrol system,built-in programofprecision,somany domesticfamous universitiesareselectingourfully functionalBrinell hardness;

l 全功能布氏硬度計以其獨特的裝配工藝、先進的技術革新、精準的加卸載試驗力、穩定的動態測量等各項領先世界的技術，而享受意大利伽利略硬度實驗室指定布氏硬度計合作廠家；

l Full functionBrinell hardnessfor its uniqueassemblytechnology, advancedtechnological innovations, accuratetest forceloading and unloading,stable dynamicmeasurementof theworld's leading technology,whileenjoyingthe ItalianGalileohardnessBrinell hardnessdesignatedlaboratorycooperation between manufacturers;

l 內置微機閉環控制系統采用的是C++語言（在國內硬度計行業只有我公司能做到，一般廠家使用的是普通的匯編語言），所以產品的可靠性和穩定性是其他廠家無法與我們相比；

l Built-inmicrocomputerclosed-loop controlsystem is used inC + +language(hardnessin the domesticindustryonlyIcan do,manufacturers usean ordinarygeneralassembly language),so thereliability andstability of the productsof othermanufacturers can notphaseusratio;

l 主機采用雙核控制，也是我公司在國內唯一的技術；

l hostdual-corecontrolisthe onlytechnologyinmy company;

l 十檔全程試驗力集成于一體，即我司布氏硬度計可以做到十檔試驗力，若非使用雙核動態精準計算機編程控制，絕對達不到國標精度要求的，而且性能也很不穩定；

l tenwholefilein oneintegratedtest force, thatourBrinell hardnesstest forcecan dotenfiles,if notusing thedual-coredynamicprecisecontrol ofcomputer programming,GBis definitelynot up tothe required accuracy, and the performanceis veryunstable;

l 主機試驗力加卸載完全采用高精度電機控制，由0.5‰精度的壓力傳感器進行反饋，CPU控制并能對試驗中損失的試驗力進行自動補償；

l HostTest forceuninstallcompletelyusing high-precisionmotor controlby0.5 ‰precisionpressure sensorfeedback, CPUcontroland is able totest forcetestto automatically compensatethe loss;

l 本機采用圖形化用戶界面，內置硬度標尺可任意轉換，菜單操作，方便快捷；

l The machine usesa graphicaluser interface, builthardness scalecan be any conversion,menu operation, convenient and quick;

l 本機內置超大容量數據儲存芯片，可自動保存每次試驗的參數設置，自動處理試驗數據，試驗過程完全自動化；

l The machinebuilt-in large-capacitydata storagechip that canautomatically saveparameter settingsfor each test,automatic processing oftest data,testprocess is completelyautomated;

l 大屏幕液晶數字顯示系統，各項操作過程和試驗結果的數據均可通過大屏幕液晶數字顯示；

l Large LCDdigital display system,theoperatingprocess and dataof test resultsare availablevialarge LCDdigital display;

l 多點測量計算平均值，試驗數據更為精確反映材料硬度性能；試驗結果的數據可通過內置打印機直接輸出，避免人為抄寫錯誤；

l multi-pointmeasurementsto calculate the average,test datamoreaccurately reflects thehardness of the materialproperties;dataof test resultscan be directlyoutput through thebuilt-in printer,avoid humantranscription errors;

l 無需人眼讀數、測量，無需手動鍵入壓痕值，直接通過高精度測微目鏡自動測量，測量精確，操作方便；

l without humaneyereadings,measurements withoutmanuallytypingthe indentationvaluedirectlythroughautomatic measurementprecisionmicrometereyepiece,measurement precision,easy to operate;

性能特點/ Features：

★最新的C++語言編制程序+壓力傳感器雙CPU控制系統，有效提高硬件在運行中的可靠性.穩定性.重復性；（其他生產企業匯編語言編制程序）

★The latestC + +programminglanguage+ PressureSensor DualCPUcontrol system, improvehardware reliabilityin operationstabilityrepeatability;..(othermanufacturersassembly languageprogramming)

★獨一無二的雙核閉環控制系統；（其他生產企業單核）

★Uniquedual-coreloop control system;(othermanufacturersmonocytes)

★16位模數轉換器,確保力值精確性和示值穩定性；

★16-bit ADC,ensurethe accuracy andvalue of thestabilityforce values????are shown;

• 殼體做過時效處理，
• shelldoneaging treatment,

★動態力值波動小于1/1000：（其他生產企業5/1000）

★Dynamicforce valuefluctuation is less than1/1000:(Othermanufacturers5/1000)

• 數字信號輸出，確保力值精確性、示值穩定性；
• digitalsignal output,ensuringthe accuracy ofthe force value,showing the value ofstability;
• 60組超大容量數據存儲庫；在待機模式時，快速查看歷史和當前的測量次數與結果；
• 60group oflarge capacitydata repository;in standby mode,quick viewhistorical and currentmeasurementsandresults;
• 具有很高的可操作性和人性化；
• with highmaneuverabilityand humane;
• 同類產品中最具有性價比；
• similar products in themost cost-effective;
• 當前國內外同類產品中最先進的產品。
• similar productsat home and abroadthe most advancedproducts.

技術指標/Technical Index：

●試驗力：       3000、1500、1000、750、500、250、187.5、125、100、62.5；（Kg）

●　硬度測量范圍：8～650 HBW

●LCD菜單顯示：硬度值、測試力、測試壓頭、標尺轉換硬度值測試極限值、試驗次數

●試驗力加載：  自動

●試樣：        最大高度：225 mm    最大寬度：135 mm

●測微目鏡：    光柵數字式

●放大倍率：     20倍

●鼓輪最小分度值：0.00125 mm

●　電源電壓：     AC220V/110V 50~60Hz

●外型尺寸：     789×543×225）mm

●重量：         130 Kg

●test force: 3000,1500, 1000,750,500,250,187.5,125,100,62.5; (Kg)
●hardness measurementrange: 8 ~ 650 HBW
● LCDmenu display:hardness value,testforce,testindenterhardnessscaletest limit,the number of trialsto convert
●testforce loading: Automatic
●Sample:Maximum height: 225 mmMaximum width: 135 mm
●micrometer eyepiece:rasterdigital
●Magnification:20 times
●drum minimumvalue: 0.00125 mm
●Power supply voltage: AC220V/110V 50 ~ 60Hz
●Dimensions: 789 × 543 × 225) mm
● Weight: 130 Kg

儀器精度指標：

布氏硬度計示值最大允許誤差和示值重復性

標準配置/ Standard configuration：

●　主機：          一臺

●　合金鋼壓頭：    ￠2.5、￠5、￠10 mm    各一個

●大.小平面試臺：各一個

●　標準硬度塊：     HBW10/3000一塊；HBW5/750  一塊

●20倍測微目鏡  一只

● RS232接線：    一根

●電源線：        一根

●　防塵罩：        一件

●　保險絲：        一只

●　產品合格證：    一份

●　產品說明書：    一份

選配附件/ Optional accessories:
平臺、夾具、壓頭、硬度塊

客戶名錄：

詳見公司客戶名錄

、、、、、、

質量保證：

本公司保證交付的硬度計執行標準:金屬布氏硬度實驗GB/T 231-2002國家標準、JJG_150-2005布氏硬度計檢定規程，參照ISO 6506：2005國際標準。精度達到合同要求。生產研發過程嚴格執行ISO9001:2000質量管理體系.

We guaranteedeliveryofStandardHardness:Brinellhardness testGB / T 231-2002national standards, JJG_150-2005Brinell hardnesstest procedures,referring toISO 6506:2005international standard.Accuracyrequirements of the contract.Production and developmentprocess strictlyimplement ISO9001: 2000quality management system.
